Fuel Rail Kits

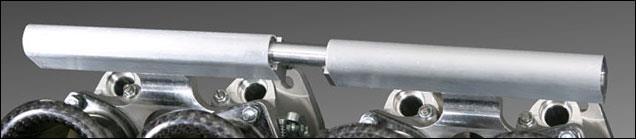

Shown is a DCOE style fuel rail kit for throttle bodies made from December 1998 onward. Instead of the mounting brackets used in previous years, the mountings are integral with the throttles. Fuel rails for the IDF and IDA will follow the same design, although some of the IDF throttles we have in stock use the old type rail mounting.

The center O-ring tube allows the use of the rails on different manifold spacings. It also allows for some misalignment of the throttles if they are fitted to a manifold which has not been machined accurately (Borla Induction manifolds are always machined accurately).

These rails are made for AN fuel connections only. They will accept our pump fitting (
206138) which has a 9/16 x 18 flare fitting for connection to the fuel line. We supply pressure regulators which are designed for rail end installation.


AN Fittings
Click images for larger view (Note: Threads not shown)

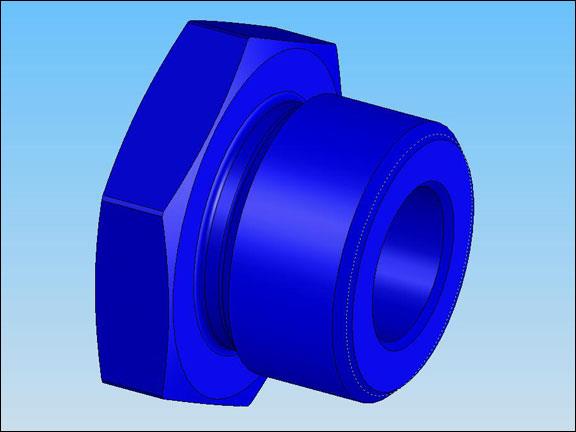

-10 AN Plug
Part No. 206136

-6 AN Plug
Part No. 206137

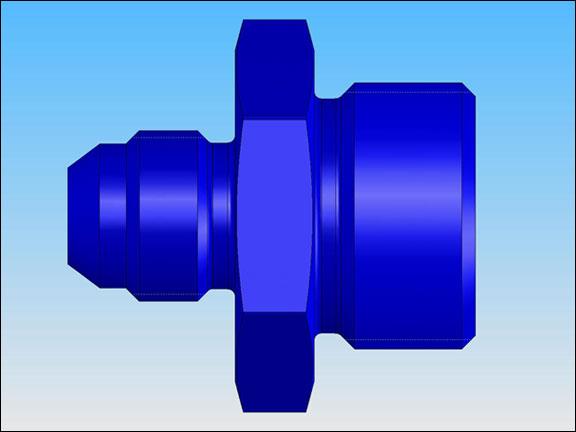

-10 to -6 AN Reducer
Part No. 206109

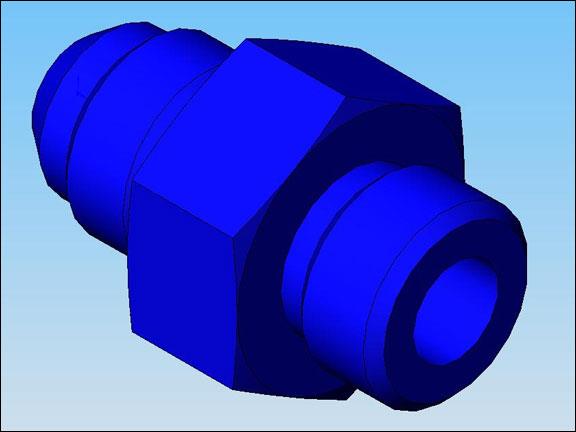

-6 AN Fitting
Part No. 206138






Available Products

Borla Part # TWM Part # Description Price Qty
206136 2900-8140 -10 AN Plug
$7.63 Add to Cart
206109 2960-1006 -10 to -6 AN Reducer
$31.73 Add to Cart
206138 2900-9206 -6 AN Fitting
$19.46 Add to Cart
206137 2900-8146 -6 AN Plug
$4.67 Add to Cart
203089 2900-5800 Fuel Rail Kits for 2900 Series
Notes: Rail kit for air cooled VW engines. Each rail has AN-6 threads at ends.
$102.43 Add to Cart
203025 2900-5801 Fuel Rail Kits for 2900 Series
Notes: Rail kit for dual set up at center-to-center distances of 83-105 mm.
$207.60 Add to Cart
203076 2900-5802 Fuel Rail Kits for 2900 Series
Notes: Rail kit for dual set up at center-to-center distances of 100-124 mm.
$209.94 Add to Cart
203077 2900-5803 Fuel Rail Kits for 2900 Series
Notes: Rail kit for triple installation (Z car, TR6, etc.)
$262.55 Add to Cart
203102 2900-5804 Fuel Rail Kits for 2900 Series
Notes: Rail kit for one throttle body with four injectors.
$198.22 Add to Cart
