2930 Series

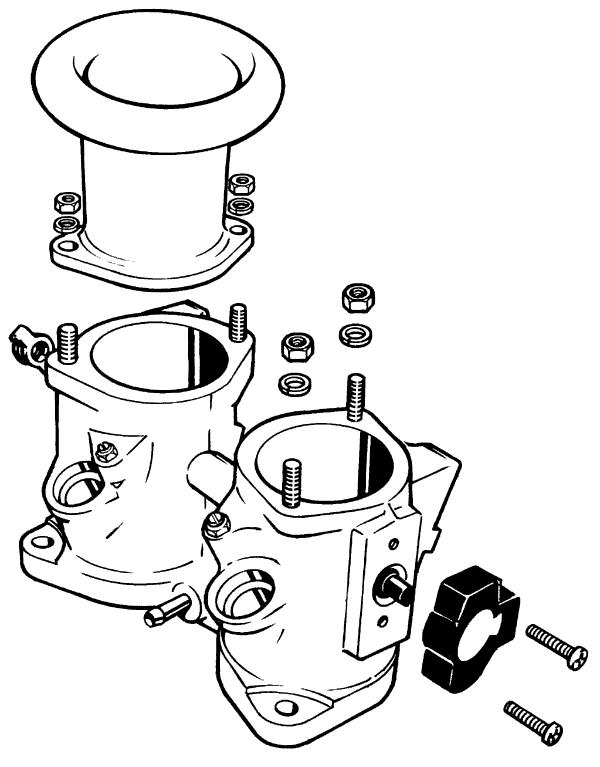

IDF style

IDF style throttle bodies are compact, downdraft, two barrel units equally at home on a V8 or VW and Porsche four cylinder, air cooled engines. They are available in 40, 45, 48, and 50 mm bore sizes. Borla Induction machines all four of the injector pockets during manufacture, supplying plugs for the unwanted pockets and removing the unwanted rail brackets (on 1999 models) at the time of ordering. Air horns for the IDF style throttle bodies are available in lengths from 35 mm to 100 mm.


Throttle Body Extensions
Dimensions Inches mm
Height  3.46 88
Bore Center-to-Center  3.54 90



2930 Series Gallery

  • Jason Lens - IDF Throttle Bodies
    Jason Lens - IDF Throttle Bodies
  • Jason Lens - IDF Throttle Bodies
    Jason Lens - IDF Throttle Bodies

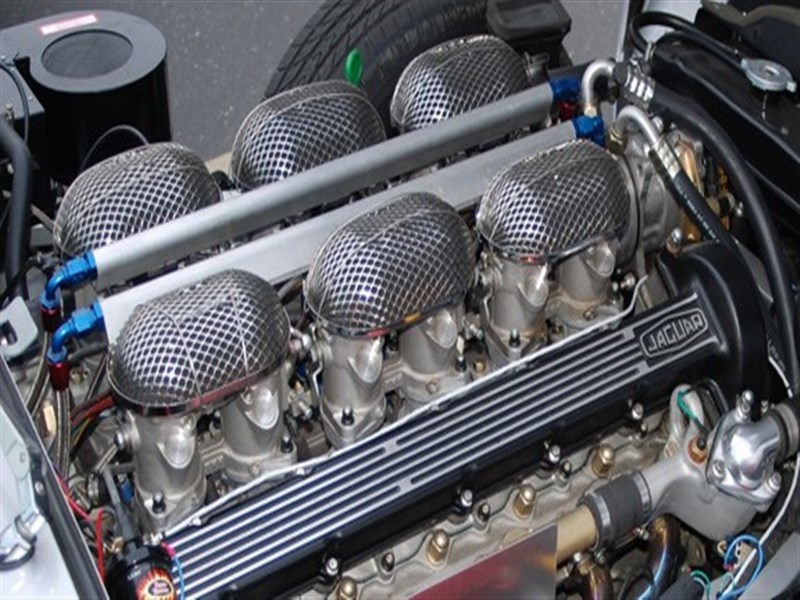

  • V12 Jaguar
    By Falconer
    V12 Jaguar<br/>By  Falconer

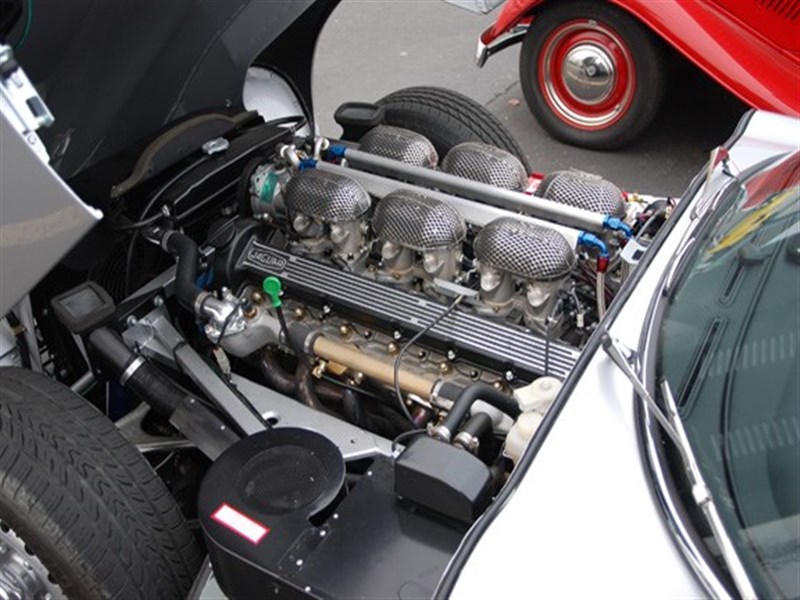

  • V12 Jaguar
    By Falconer - Alt
    V12 Jaguar<br/>By  Falconer - Alt

Available Products

Borla Part # TWM Part # Description Price Qty
202059 2930-4002/L 40mm IDF Throttle Body, LH
Notes: Left hand unit; Has shaft and pad for TPS; 90mm min. bore c to c
$395.00 Add to Cart
202060 2930-4002/R 40mm IDF Throttle Body, RH
Notes: Right hand unit; 90mm min. bore c to c
$395.00 Add to Cart
202007 2930-4502/L 45mm Throttle Body IDF, 2 pocket, LH
Notes: Left hand unit; Has shaft and pad for TPS; 90mm min. bore c to c
$395.00 Add to Cart
202008 2930-4502/R 45mm Throttle Body IDF, 2 pocket, RH
Notes: Right hand unit; 90mm min. bore c to c
$395.00 Add to Cart
202009 2930-5002/L 50mm IDF Throttle Body, LH
Notes: Left hand unit; Has shaft and pad for TPS; 90mm min. bore c to c
$395.00 Add to Cart
202010 2930-5002/R 50mm IDF Throttle Body, RH
Notes: Right hand unit; 90mm min. bore c to c
$395.00 Add to Cart
