3004 Series

DCNF Style

Borla Induction 3004 Series are a direct replacement for the DCNF carburetors fitted to Ferrari, Maserati, and Aston Martin, in addition to having a number of aftermarket applications. The unit is extremely compact with barrel centers at 48mm and an overall height of 86mm. The manifold mounting and air cleaner flanges are identical to the DCNF carburetor. Borla Induction DCNF throttle bodies are equipped with pockets for Bosch, Lucas, and Weber injectors, using an O-ring top and bottom. Each barrel has an air by-pass screw. There are integral mounts for the fuel rail which is supplied with the unit. AN-6 threads are in each end of the rail for which a specific fitting, part number 206138, is available. The left hand unit incorporates a shaft with a single 5/16" D-drive and mounting pad for Borla Induction throttle position sensors.







Dimensions
Height 3.46 " 88 mm
Bore Center-to-Center 1.889 " 48 mm
Bottom Flange 3.35 x 2.04 " 85 mm x 52 mm
Top Flange 3.8 x 1.88 " 96 mm x 48 mm



3004 Series Gallery

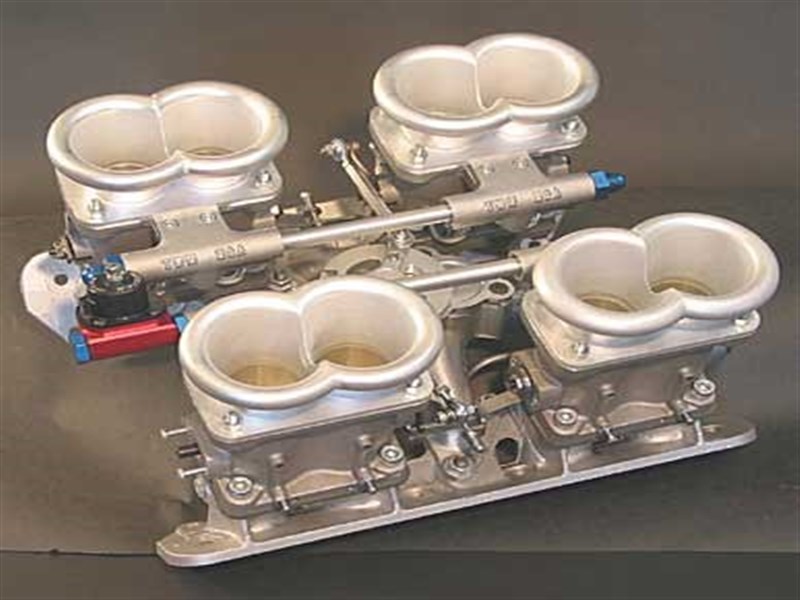

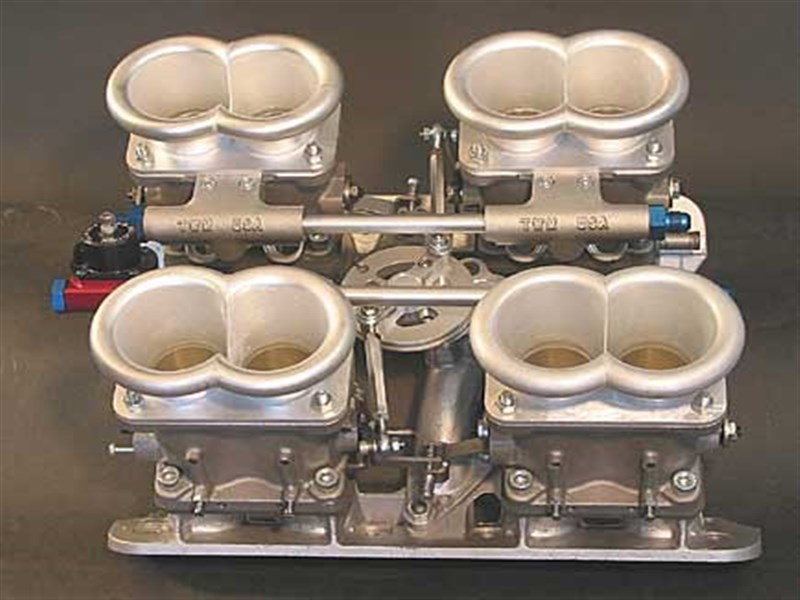

  • 3004 Series Throttle Kits for 308 Series Ferraris
    3004 Series Throttle Kits for 308 Series Ferraris
  • 3004 Series Throttle Kits for 308 Series Ferraris
    3004 Series Throttle Kits for 308 Series Ferraris

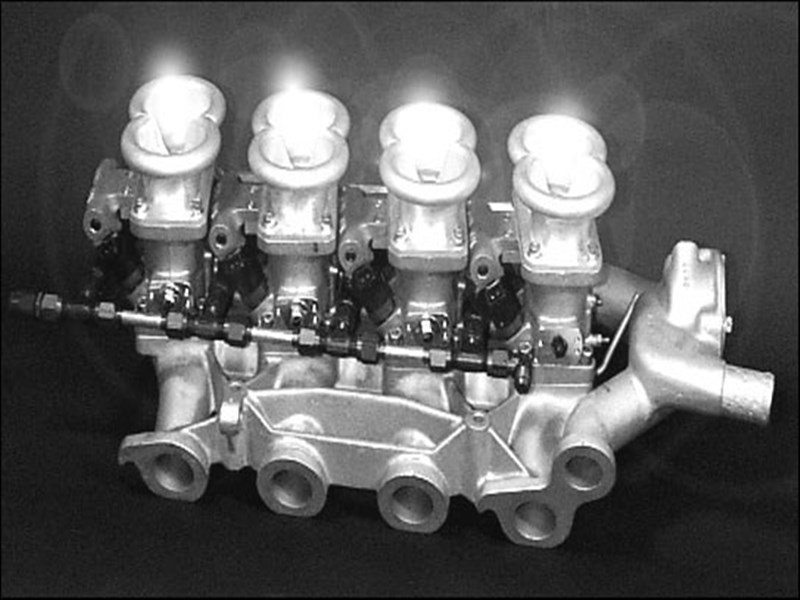

  • Maserati Bora manifold with four DCNF throttles
    Maserati Bora manifold with four DCNF throttles

Available Products

Borla Part # TWM Part # Description Price Qty
202025 3004-4002/L 40mm Throttle Body, DCNF, LH, TPS unit
Notes: 48mm bore c to c
$485.00 Add to Cart
202026 3004-4002/R 40mm Throttle Body, DCNF, RH
Notes: 48mm bore c to c
$485.00 Add to Cart
202032 3004-4402/L 44mm Throttle Body, DCNF, LH, TPS unit
Notes: 48mm bore c to c
$485.00 Add to Cart
202033 3004-4402/R 44mm Throttle Body, DCNF, RH
Notes: 48mm bore c to c
$485.00 Add to Cart
202030 3004-4602/L 46mm Throttle Body, DCNF, LH, TPS unit
Notes: 48mm bore c to c
$485.00 Add to Cart
202031 3004-4602/R 46mm Throttle Body, DCNF, RH
Notes: 48mm bore c to c
$485.00 Add to Cart
